Post-processing without (re)compilation

Previous pageReturn to chapter overviewNext page

Note: this article is part of explaining compilation outside of IDE.



Important Note: usually, you call ecc32.exe/emake.exe from [EurekaLog installation folder]\Packages\[IDE name]\ folder or from \bin folder of your IDE. That way ecc32.exe/emake.exe will know which IDE you are using. However, if you are calling ecc32.exe/emake.exe from \bin folder of EurekaLog, or if you copy ecc32.exe/emake.exe to another folder - then it will NOT know which IDE you are using. You have to supply --el_ide command line switch to indicate what IDE should be used.



This can be useful in situations where 3rd party build tools are not able to directly run ecc32.exe/emake.exe (or you just don't want to build "scary" command-line). So, you're using "someone" to build your project as usual - this can be IDE, build server/tool (like FinalBuilder). Just don't forget to set mandatory options for your project.



Now you need to post-process your already compiled project without recompiling it. To achieve this we just need to use another EurekaLog command line parameter: --el_alter_exe.



Here is how the command line would look given that our application has already been compiled and we just want to add EurekaLog's features:



Example (Delphi 4-7)



ecc32 --el_alter_exe=Project1.dpr



Example (Delphi 2005-2006)



ecc32 --el_alter_exe=Project1.bdsproj



Example (Delphi 2007+)



ecc32 --el_alter_exe=Project1.dproj



Example (Delphi 2007+ with performance boost)



ecc32speed --el_alter_exe=Project1.dproj



Example (C++ Builder 5-6)



emake --el_alter_exe=Project1.bpr



Example (C++ Builder 2006)



ecc32 --el_alter_exe=Project1.bdsproj --el_mode=Builder



Example (C++ Builder 2007+)



ecc32 --el_alter_exe=Project1.cbproj --el_mode=Builder



Note: EurekaLog is able to recognize both project files (such as .dpr) and project configuration files (such as .dproj). It's recommended to specify project configuration files (such as .dproj) when possible.



If you want to specify the complied application's file name use:



Example



ecc32 --el_alter_exe=Project1.dpr;.\Debug\Win32\Project1.exe



(replace "ecc32" -> "emake" for C++ Builder, replace ".dpr" extension if needed - as in the previous example above)



You may also need to specify absolute or relative paths to files in some cases.



Important Note: post-processing will inject information into already compiled executable. It can not recompile or change the project. If you are switching between EurekaLog settings - your .dpr source file may need to be changed (e.g. to change included EurekaLog units in uses clause). To achieve this we just need to use another EurekaLog command line parameter: --el_prepare.



A typical batch file to build your project with EurekaLog may look like this:



Example



@echo off



REM Step 1: [Pre-Build] adjust .dpr source before compilation

ecc32 --el_prepare=Project1.dproj --el_config=Project1_Debug.eof



REM Step 2: compile your project

call "C:\Program Files (x86)\Embarcadero\RAD Studio\9.0\bin\rsvars.bat"

msbuild Project1.dproj /t:Build /p:config=Debug;platform=Win32



REM Step 3: [Post-Build] post-process your project - inject options and/or debug information

ecc32 --el_alter_exe=Project1.dproj;.\Debug\Win32\Project1.exe --el_config=Project1_Debug.eof



--el_config switch is optional.

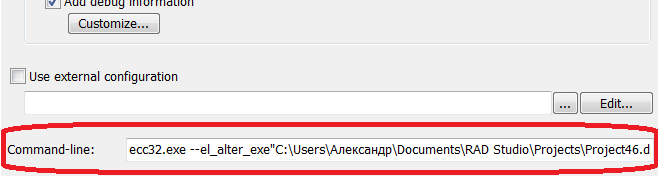

Note: EurekaLog shows command-line to post-processing your project for your convenience at General tab in EurekaLog project options:





Ready to use command-line in EurekaLog project options



This edit is read-only. Just select all text, copy it into Windows clipboard and insert in place where you want to invoke EurekaLog's post-processing.






You can also use ecc32 to post-process executables compiled by non-Embarcadero compilers (such as Microsoft Visual Studio). You can use NUL as project file name and supply --el_config argument to specify location of EurekaLog options (.eof file). You can create .eof file by exporting EurekaLog options from any project or you can use standalone Settings Editor tool. You would need to add --el_source argument to indicate location of debug information (which is stored in PDB for Visual Studio).



Example



ecc32 --el_alter_exe=NUL;.\MS\VC\MSSample.dll --el_config=.\MS\VC\MSSample.eof --el_source=PDB
